FM-215HDR | 21.5" professional High-bright FHD Field Monitor with flight case and VESA-tripod adaptor and 12G-SDI 4K QD-LED HDR 100%DCI-P3 Zero-Delay AI-Calibration
› 21.5-inch 1920×1080 QLED Panel
› 1000nits high bright HDR
› 100% DCI-P3 wide color gamut coverage
› VICO 1.97 A-class Eye Protecting LCD
› 12G-SDI, 4x3G-SDI, HDMI®2.0 4K input
› 4-ch SDI/HDMI® mixed multiview
› 2-ch SDI/HDMI® PBP or PIP view
› Multi Color Gamut & HDR/SDR Viewing
› Payload ID auto setting
› 18-bit internal color processing
› Audio/Video Zero latency
› 3DLUT Auto Self-calibration without PC
› Built-in Multi camera Delog LUTs
› User 3DLUTs upload via USB
› Waveform / Vector / Histogram / Eye pattern
› Focus assist / False color / Zebra
› 16-ch audio meters / Lissajous pattern
› 5.1 & 7.1 surround sound phase pattern
› IP webserver remote control
› TSL UMD and text TALLY display
› USB firmware upgrade

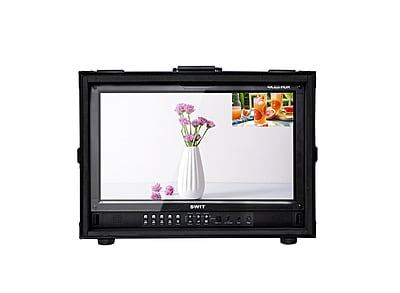

21.5” Field Production Monitor
4K inputs, 1000nits, HDR, Multi-view
FM-215HDR is a 21.5-inch 4K 12G-SDI input high bright HDR monitor for filmset or live streaming productions, go with flight case, screen protector and could be installed on C-stand for convenience field video productions.
1000nits Sunlight View HDR
The monitor is equipped with an advanced Quantum Dot LED (QD-LED) panel of 1000nits high bright backlight, outdoor sunlight viewable, and support PQ/HLG/S-log3 HDR monitoring.

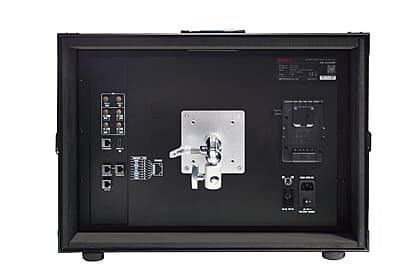

All 4K Input Interfaces
FM-215HDR supports various 4K inputs including:
- 12G-SDI 4K in and out
- 4× 3G-SDI Quadlink 4K input
- HDMI® 2.0 4K input

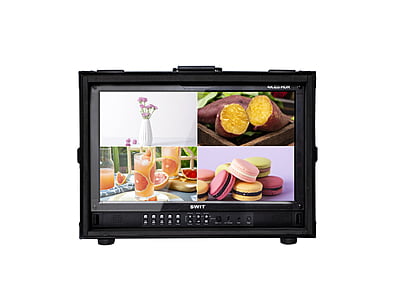

Multiview Display Mode

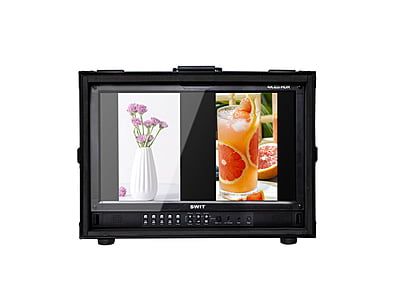

Supports 4x input video of mixed formats quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view, and any 2x inputs vertical (Cropped) display mode. You can select HDR/SDR gamma, color gamut independently for each input.

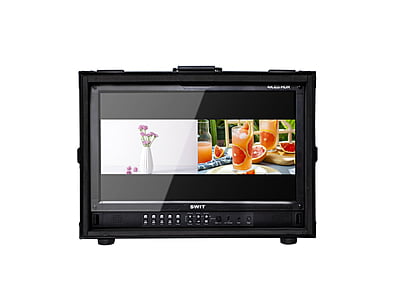

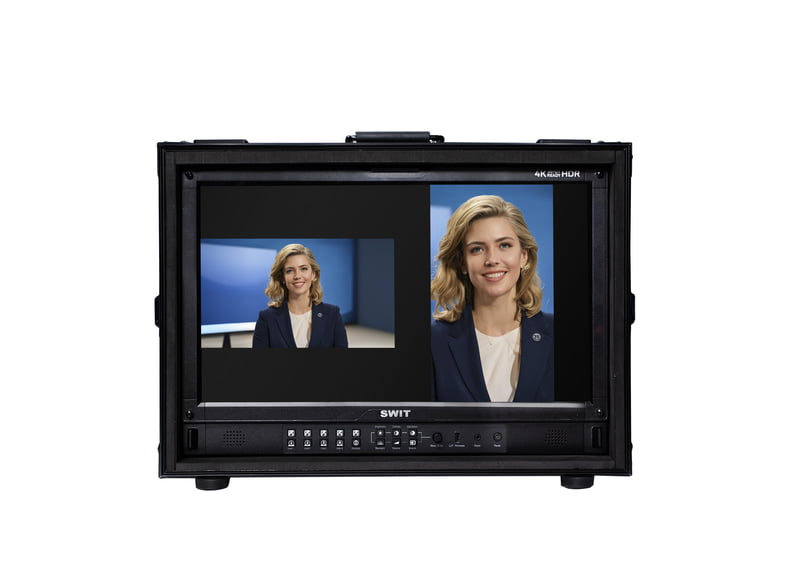

H/V Multi-platform Livestreaming View
1× input source to display regular horizontal view and cropped vertical view side by side simultaneously, for multi-platform livestreaming productions.

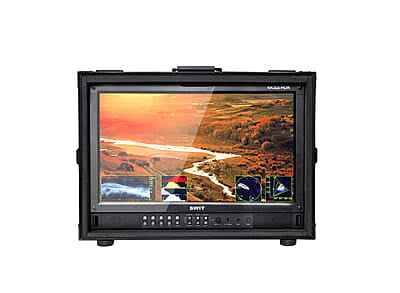

Multiple Video Analysis Patterns

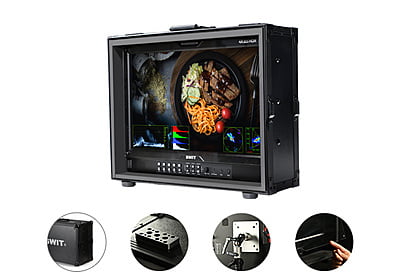

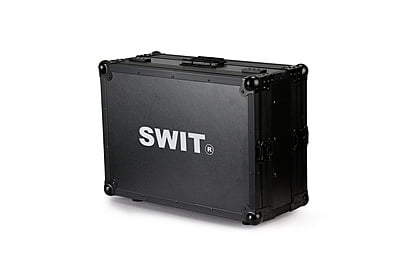

Go with Flight Case
The FM-215HDR monitor is shipped with strong aluminium flight case, for all-around protections on filmset.
Equipped with Screen Protector
The FM-215HDR monitor provides an acrylic screen protector, with high transparency and anti-reflection.

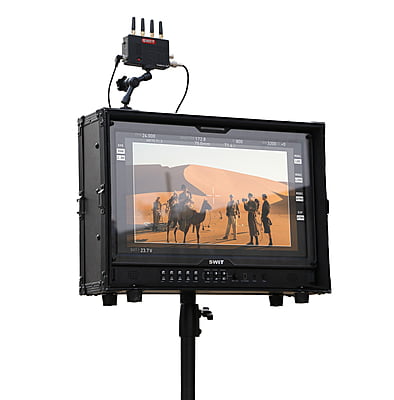

2× Top Cheese Boards
On the top of the flight case, 2× cheese boards are provided to install accessories like wireless video receiver, with multiple 1/4” and 3/8” screw threads.
Monitor
- PanelFHD
- Input4K
