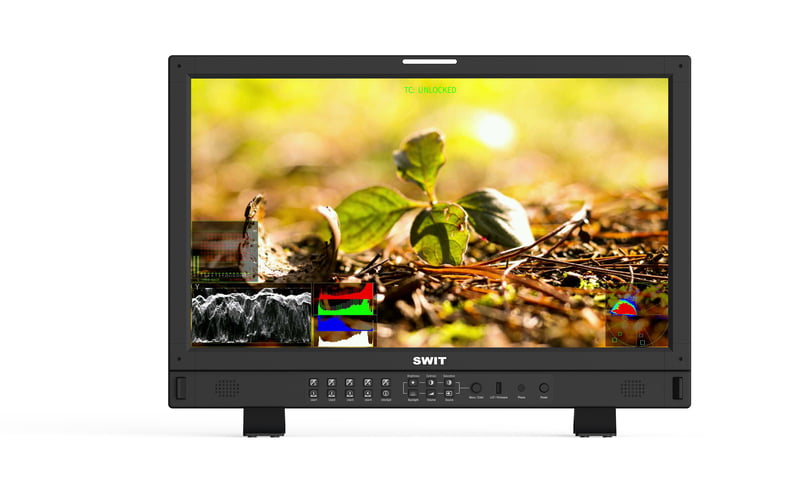

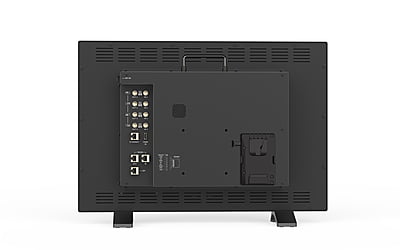

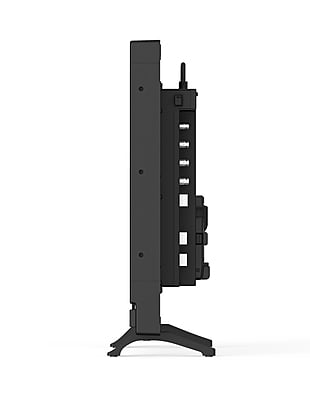

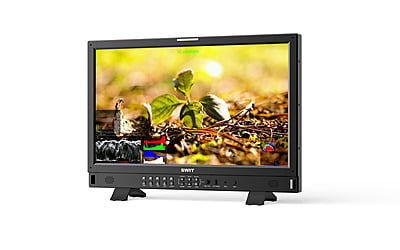

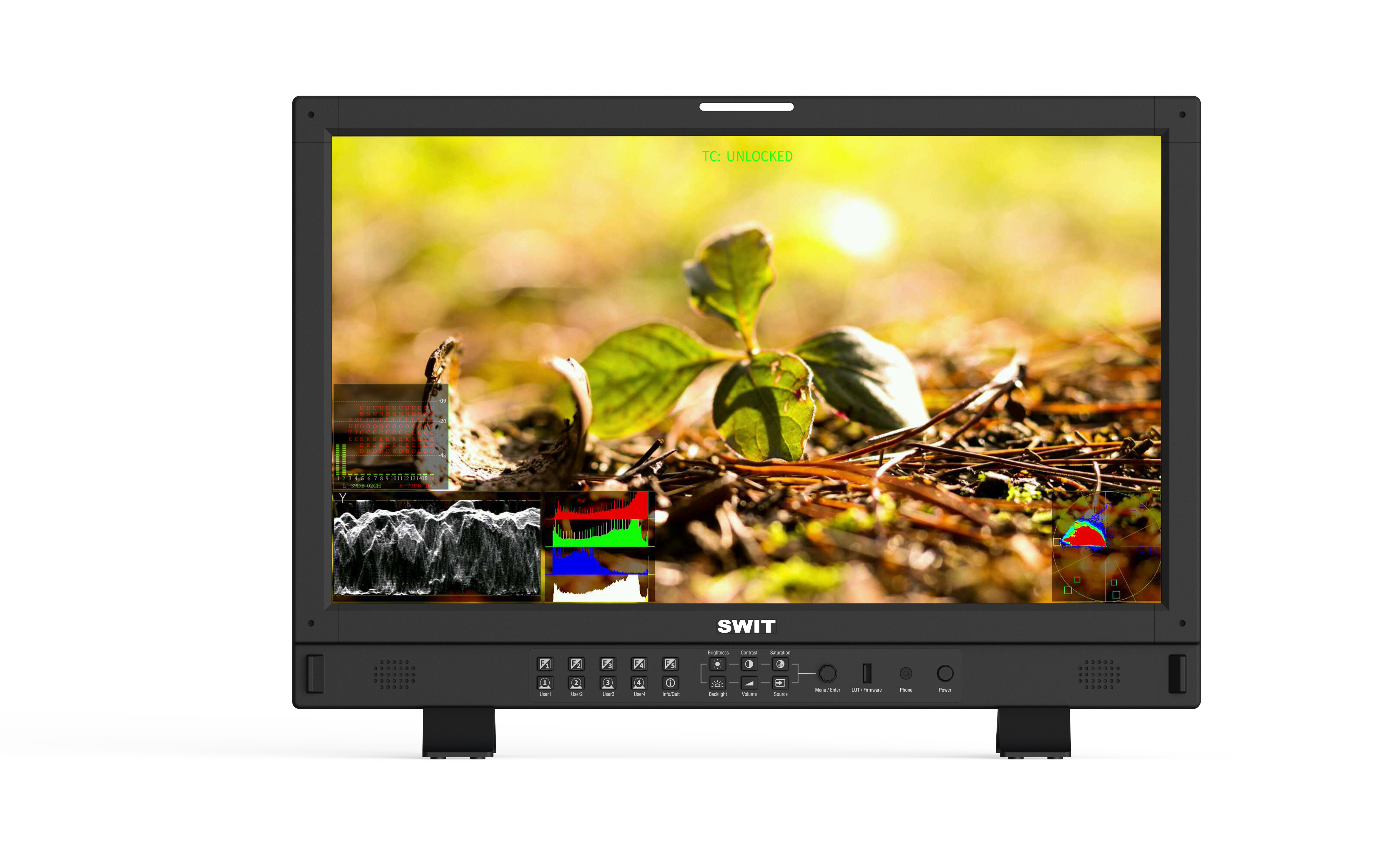

BM-U245HDR | 23.8" 8K High-Bright 4x12GSDI HDR Zero-Delay Reference UHD Monitor with Auto-Calibration

› 23.8-inch LCD Panel, 3840×2160 resolution

› 1000nits high bright LED backlight

› HLG/PQ/S-log3 HDR

› 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input

› 12GSDI via SFP Fiber input (Optional)

› ST2110 IP via SFP Fiber input (Optional)

› SFP Fiber 12G input converted to 12GSDI out

› 3DLUT Auto Self-calibration without PC

› Audio/Video 0 latency for lip-sync

› Built-in Multi camera Delog LUTs

› User 3DLUTs upload via USB

› Waveform / Vector / Histogram

› Focus assist / False color / Zebra

› 16-ch audio meters / Lissajous

› IP webserver remote control

› TSL UMD and text TALLY display

› USB firmware upgrade
